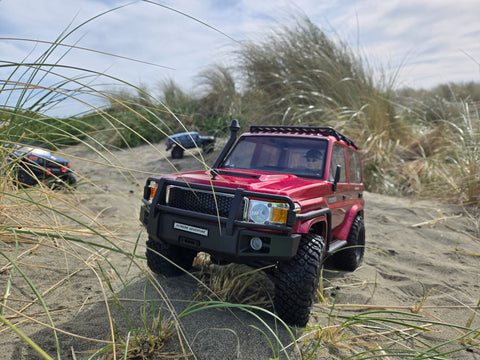

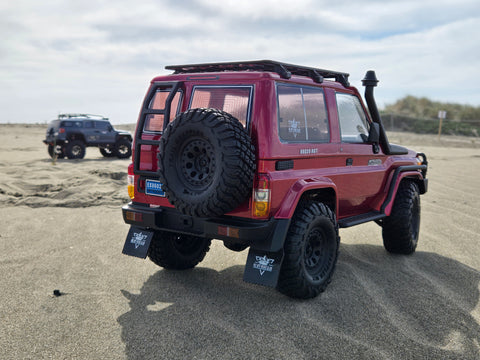

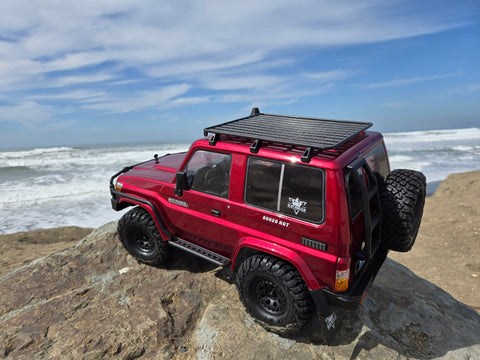

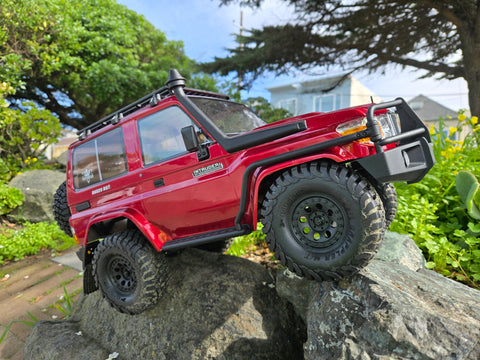

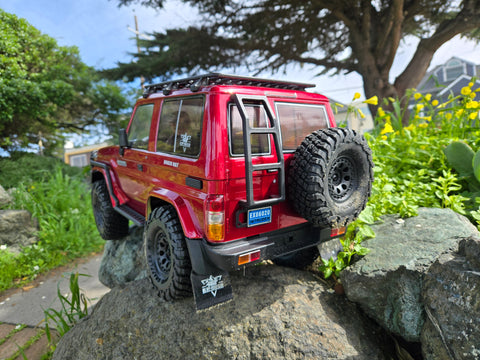

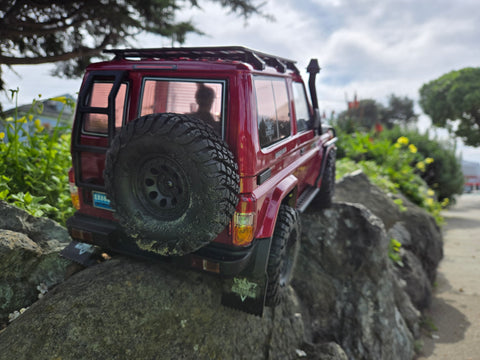

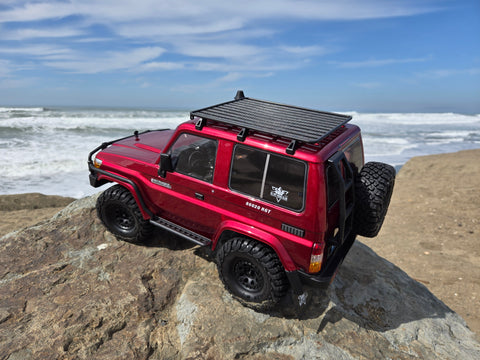

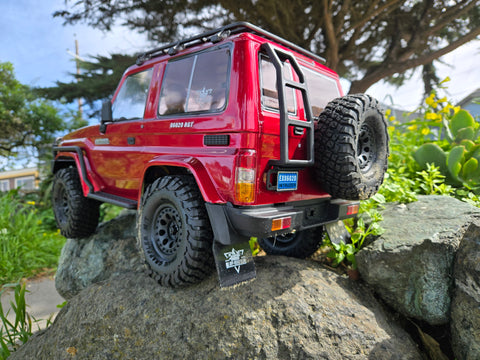

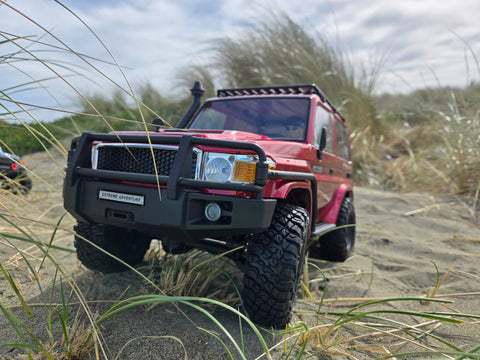

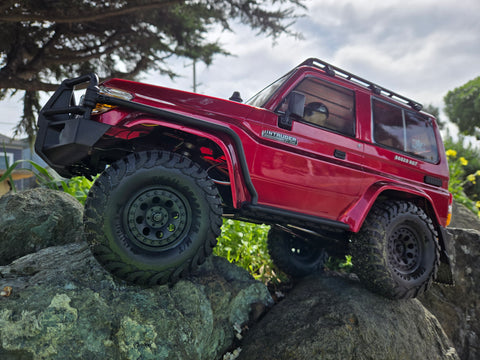

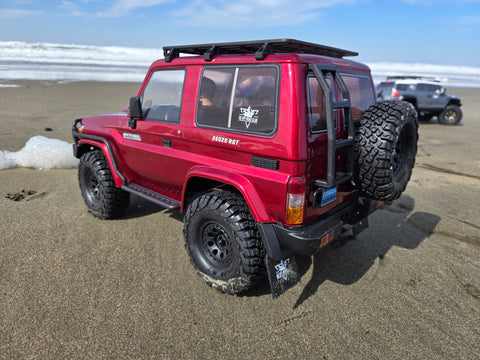

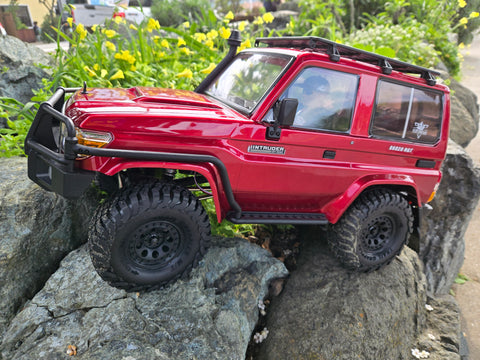

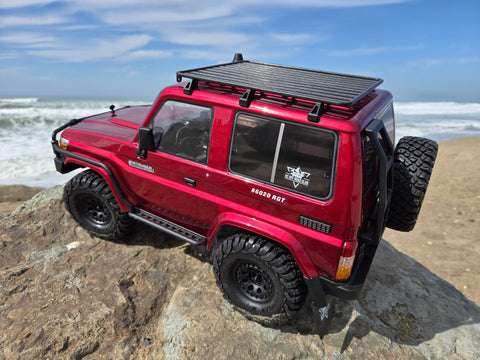

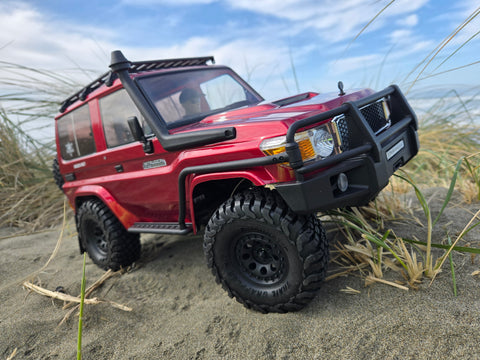

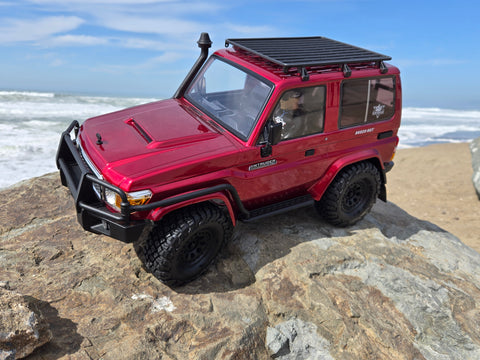

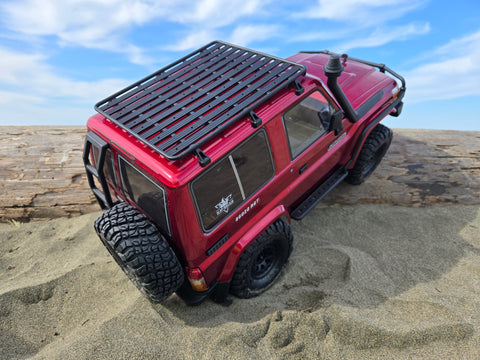

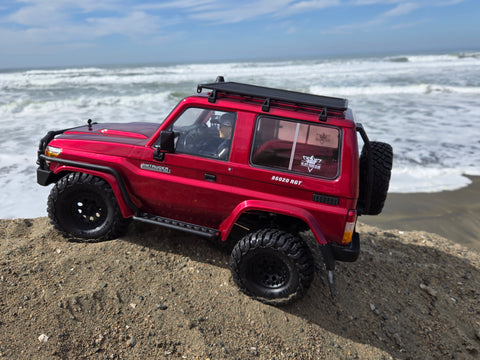

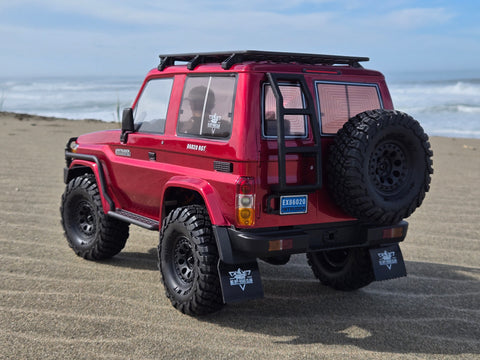

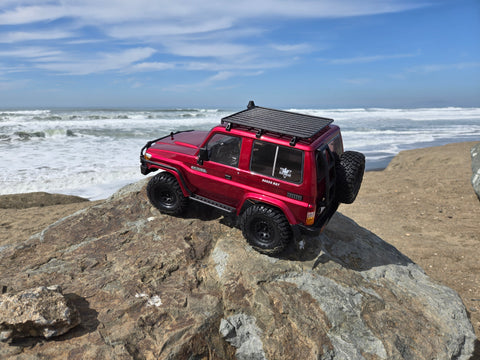

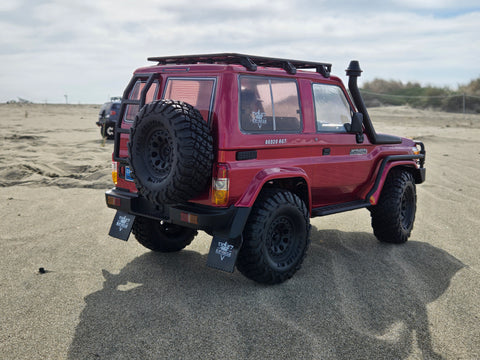

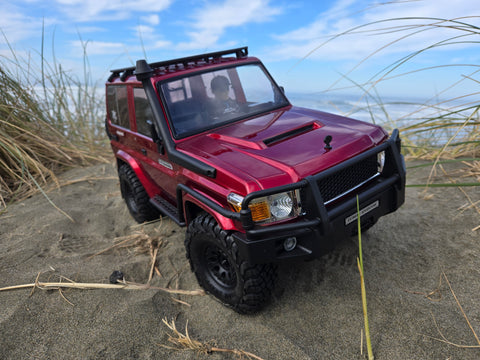

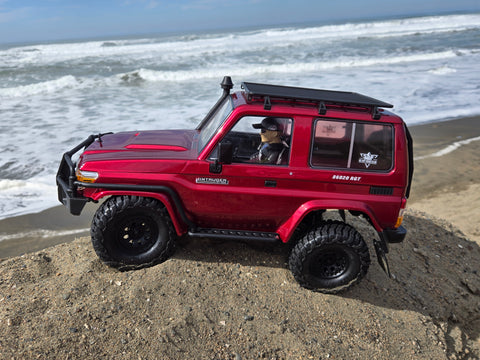

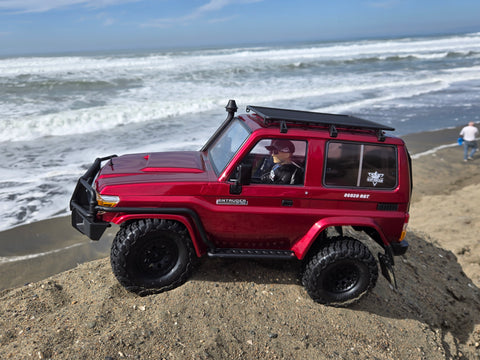

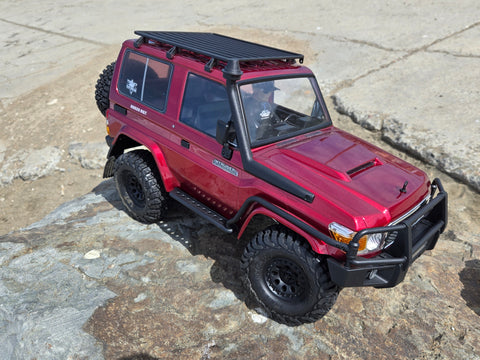

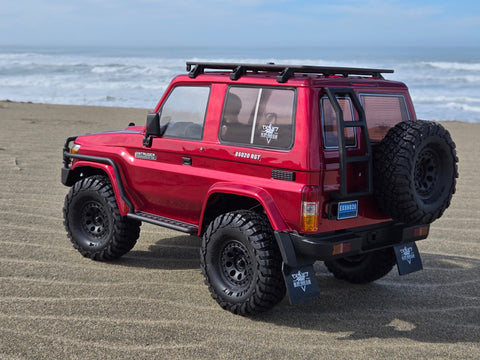

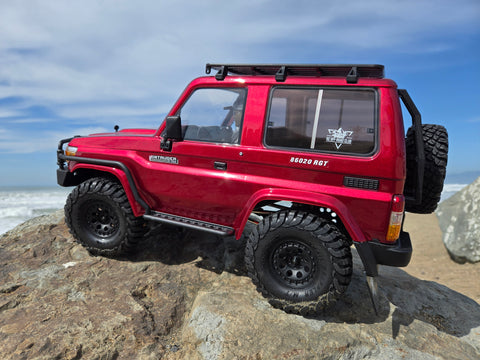

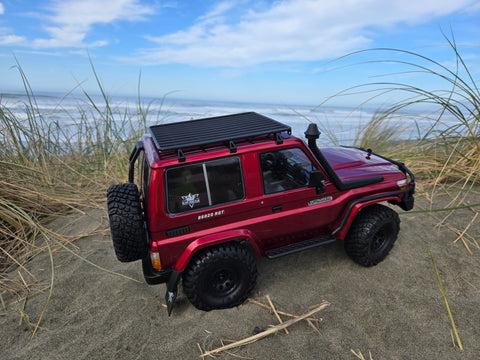

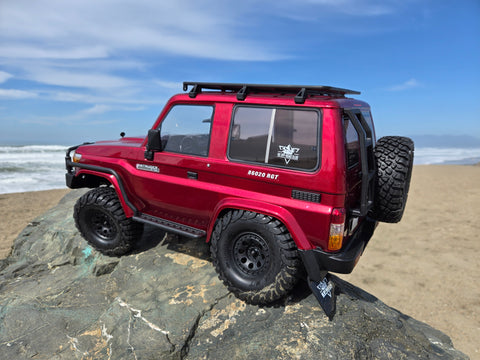

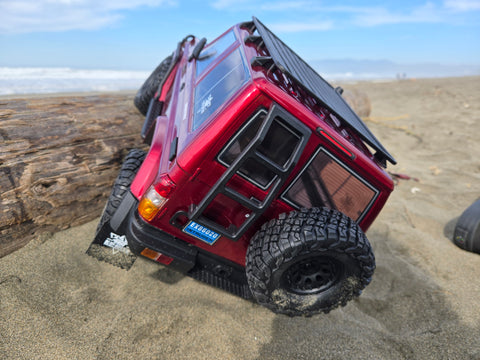

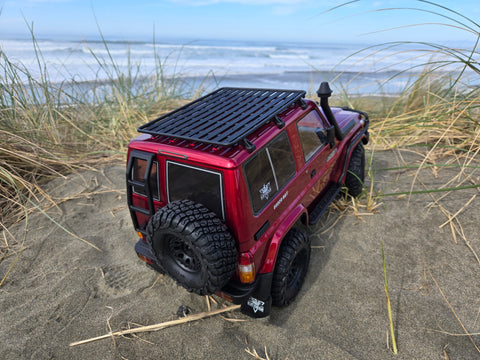

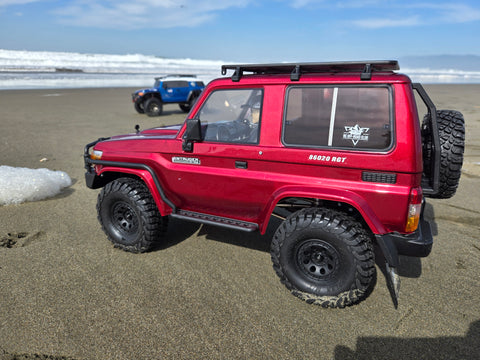

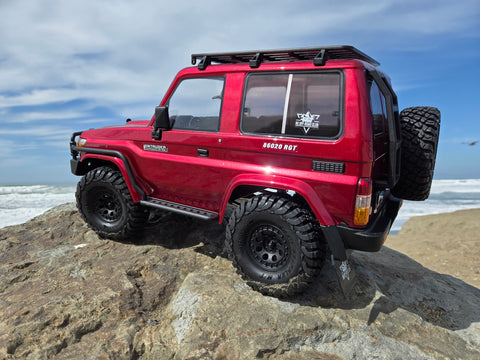

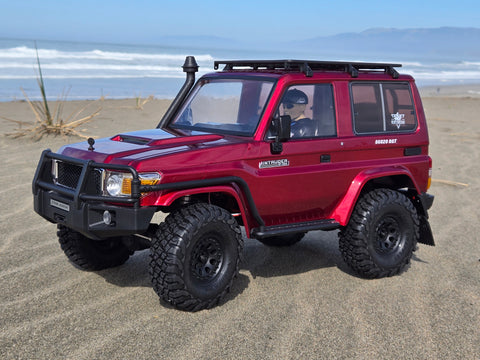

RGT Intruder

Description

1. 3MM CNC aluminum alloy chassis rail；

2.  integral straight axle in front and rear,  front axle comes with caster angle ;

3. Front-drive steering driveshaft  use steel #1144 CVA;

4. 46-degree steering angle and positive Ackerman angle;

5. servo mounted on axel , 25T metal servo arm;
6. Low center of gravity with slip reducer, all metal gears with #45 steel reduction shaft;

1. The front and rear axles use CNC steel spiral gear for greater durability, which can raise up the front and rear driveshaft and make the chassis of the car have better pass ability.

2. Reverse transmission equipped with high-quality bearing with sealed cover,  effectively reduce shaft effects.

3. 6mm diameter solid metal 8 connecting rod structure.

4. The ball joint of the linkage rod uses reinforced nylon material made of a new formula, which has more resistant to friction and deformation.

1. The suspension system adopts CNC aluminum alloy twisted hydraulic shock absorber, which brings more convenient damping adjustment.

2. The wheels are made of butyl rubber, installed with 115mm diameter MT tires, coming with 1.9-inch wheel hub for better climbing grip and more realistic.

3. Equipped with winch servo installation position;

4. Equipped with two battery tray installation position, suitable for different battery sizes;

5.  Hidden bodyshell latch design, add bodyshell latch fixed buckle to preventing fall and loss.

Intruder will be available to consumers in RTR version, equipped with 35T RC550 super torque motor, 2-in-1 60A waterproof ESC, 6-channel 2.4G remote controller.
